We do support multiple GPS Hardware from different manufacturers inlcuding our adopted Rodeo, Bronco and Maxima devices. Please ask us for all hardware details.

Hardware Features

  • Cell ID positioning function
  • Support CCD camera image capture
  • Support CAN Bus solution
  • Voice, SMS, CS Data, GPRS TCP/UDP Communication
  • Remote Configuration
  • Real Time Tracking (time, distance, interval or intelligent mode)
  • Unit Password Setting
  • Power Management
  • Power Low/Lost Alarm
  • Back-up Battery Power Low Alarm
  • Battery Back-up Capacity for more than 3 Days
  • Voice Wiretapping
  • Geo-fencing Control
  • Journey Report Wireless Download
  • GSM/GPRS Simultaneously
  • 2 IP Addess Configurable
  • Mileage Report
  • Tow Alarm
  • User Defined Report Alarm
  • Firmware Upgrade Remotely (via CS Data/GPRS)
  • GPS Antenna Disconnect/cut Alarm
  • Support barcode reader
  • Support CAN Bus Solution



Hardware Features

  • Pocket slim
  • Built-in Lithium battery 3.7V 1050mA/H or 3.7V 1700mA/H
  • Ability to report to a server in either TCP or UDP protocols
  • Selectable reporting method: by time, distance, intelligent or Low battery level
  • With SOS button to send SOS report
  • Automatic sleep mode and wake up based on movement (Built-in motion sensor)
  • LED indication of status of power, GPRS and GPS status
  • 110/220 AC adapter charger
  • RoHS compliant

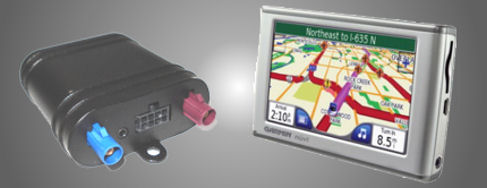

Ferna with Garmin Support

  • Saves GPRS charges.
  • Customize the content of incoming data packets.
  • Supports data compression.
  • Provides full routing and dispatching capability.
  • Full support for Garmin FMI version 2 interface.
  • Contains 8MB of storage (that lasts for weeks).





Ferna Portable Quick Overview

  • Quad-band GSM/GPRS (850/900/1800/1900 MHz)
  • Motion sensor and vibrating alerts
  • GPS/A-GPS with tracking of up to 14 satellites - Optional multi-day ephemeris support - Time to first fix: 2 s @ 5 m; 2 sec navigation fixes (with assistance data)

Ferna Portable is a fully certified quad-band integrated platform that provides complete GSM/GPRS functionality for mobile tracking applications. Its integrated GPS/A-GPS capabilities include tracking of up to 14 satellites and location reporting through SMS and GPRS.





Hardware Specification

  • GPS Receiver: 20 Channels SiRF Star III GPS Receiver
  • Active GPS Antenna
  • 1 Hz update rate
  • 1-10m (Average) accuracy
  • WGS-84 Datum
  • 9-30 V DC Power source
  • 2MB Flash Built-in Memory
  • 10 Input Ports
  • 8 Output Ports
  • DB9 Male Connector (RS 232)
  • 57,600bps default baud rate (configurable)
  • Phone Jack Connector (RJ 59)
  • 9,600bps default baud rate (configurable)

Application

  • Vehicle Real-Time Tracking
  • Security Rescue Anti-Hijack
  • Fleet Management
  • Location Based Service

Peripherals

  • GPS Antenna
  • GSM Antenna
  • Input Cable
  • Output Cable
  • Power Cable
  • RS-232 Configuration Cable (optional)
  • Hands-Free Kit (optional)
  • IR Phone Call Dialer (optional)
  • Panic Button (optional)
  • Support CAN Bus Solution






Input Port

  • 3 Digital Inputs (positive trigger)
  • 2 Digital Inputs (negative trigger)
  • 1 Analog Inputs (10 Bits Resolution)

Output Port

  • 3 Digital Outputs (negative trigger; max. 300mA, 12V DC)

Hardware Specification

  • Dimension: 110mm* 95mm * 30mm
  • Weight: 110gm
  • GPS Receiver: Over 20 Channels GPS Receiver
  • GPS Antenna: Active
  • Update Rate: 1 Hz
  • Accuracy: 1-15m (Average)
  • Datum: WGS-84
  • Power Source: 8-30 V DC
  • Power Consumption:
    Less than 70 mA@12V (operating mode),
    Less than 15 mA@12V (standby mode),
    Less than 6mA@12V (sleep mode)
  • Temperature: -30C ~+80C(operation)
    without back-up battery equipped;
  • -40C ~+85C (storage)
  • Communication: GSM 850/900/1800/1900,
    Voice, SMS , GPRS TCP/UDP
  • Built-in Memory: 8MB Flash Memory　
  • Serial Port:1 RS 232 Serial Port,
    Default Baud Rate: 57600 bps(configurable)
  • Back-up Battery: Li-Polymer 950mAh

Peripherals

  • GPS Antenna
  • GSM Antenna
  • Input Power Combined Cable
  • Output Power Combined Cable
  • RS-232 Configuration Cable
  • Li-polymer Back Up Battery
  • Mobile Data Terminal (MDT)
  • Hands-Free Kit
  • RFID Reader
  • Support CAN Bus Solution






  • For receiving & making phone calls (Rodeo model requires RF dialer kit).
  • Hands free kit includes audio box, microphone, and speaker.
  • Support voice wire tapping.
  • Responsive voice output confirmation for keypad dialing.
  • English and Beeping version available only for Rodeo series and must purchase RF dialer.
